Troxus Lynx
This item is currently not available.
Details

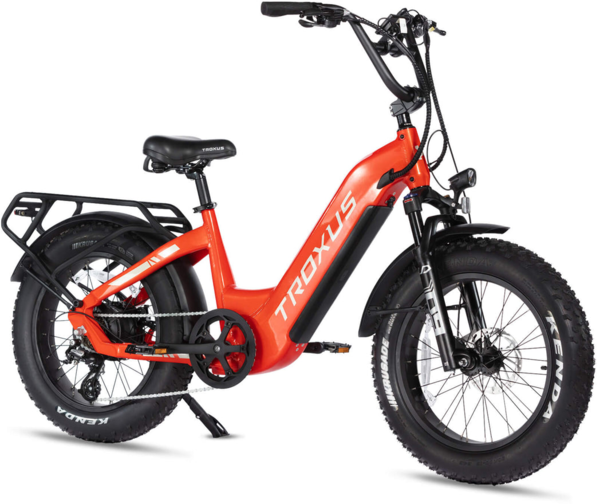

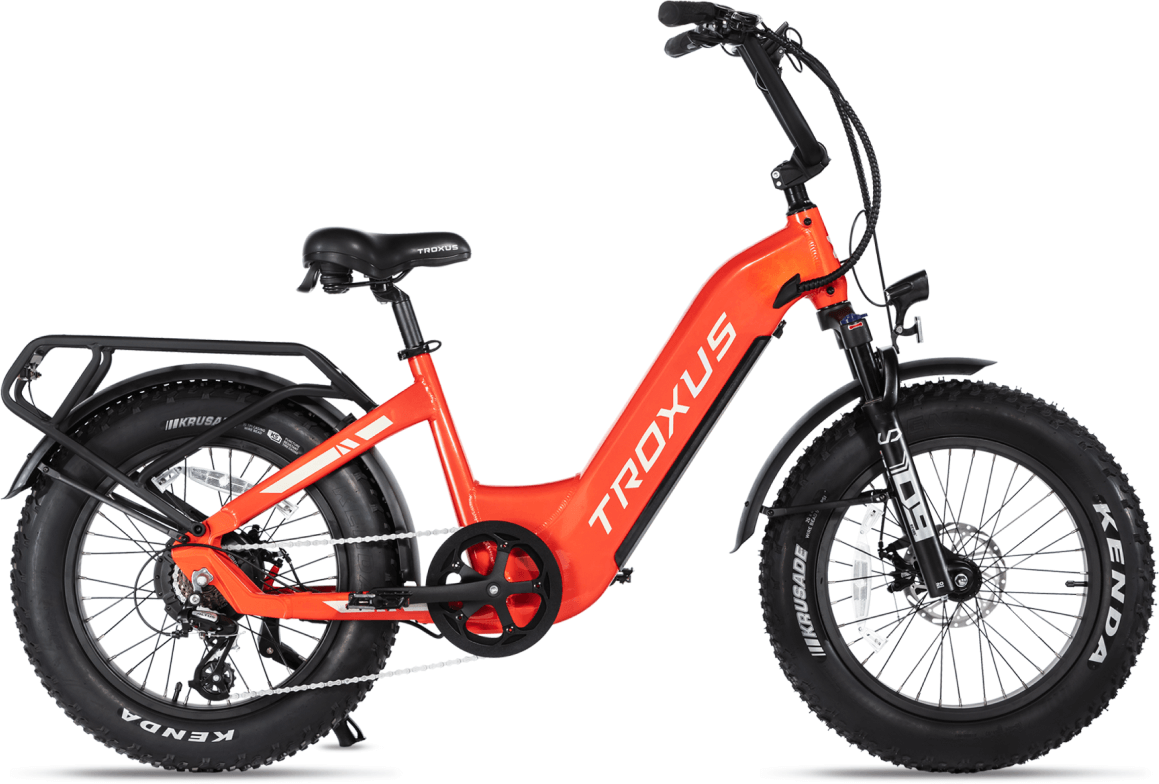

The Lynx is a Class 3 e-bike equipped with a large-capacity battery, front and rear fenders, and a rear rack to meet your different needs in the city or outdoors. The rack can easily be used with a child carrier to make trips to school more enjoyable. The frame’s low center of gravity increases stability and safety.
Standard Weight Limit 275LB
Maximum Weight Limit 353LB
| Frame Size | Standard (mm) |
|---|---|
| Wheel size | 20"*4.0 |
| Seat tube | 375 |
| Seat tube angle | 71° |
| Head tube length | 145 |
| Head angle | 70° |
| Effective top tube | 645 |
| Bottom bracket height | 286.5 |
| Bottom bracket drop | 10 |
| Chainstay length | 425 |
| Offset | 46 |
| Wheelbase | 1126.4 |
| Frame Reach | 450.4 |
| Frame Stack | 563.5 |
Specs
| Frame | 6061 Aluminium Alloy |
|---|---|
| Fork | Aluminum Alloy, Suspension Fork |
| Rims |
Front: Single Wall Aluminum 36h Rear: Double Wall Aluminum 36h |
| Hubs | Nutted Front and Rear |
| Tires | KENDA 20" x 4.0" |
| Bottom Bracket | Square Taper, Sealed |
| Crankset | 165mm w/46T |
| Shifters | 7 Speed |
| Front Derailleur |
Front wheel: black stainless 13 Gauge Rear wheel: black stainless 12 Gauge |
| Rear Derailleur | Shimano 7 Speed |
| Cassette/Freewheel | 14-28T, 7 Speed Cassette |
| Chain | KMC Z7 |
| Brakes | Tektro M280 Mechanical Disc Brake |
| Handlebars | Aluminum 31.8mm, 620mm |
| Tape/Grips | Ergonomic Comfort |
| Stem | Threadless, 28.6mm,30 Degree Rise |
| Headset | GINEYEA Sealed Bearing Headset |
| Seatpost | Forged Alloy, 30.9*350mm, 2 Bolt Clamp |
| Saddle | Troxus |
| Pedals | 9/16" Alloy Platform |
| Motor | Bafang 48V 750W hub motor |
| Battery | Removable Internal Lithium-ion 48V, 20Ah (960Wh)with Samsung cells |
| Controller/Display | L401 LCD |
| Charger | 54.6V 3A |
* Subject to change without notice.
