Troxus Explorer
$1,599.99
$1,799.00
Details

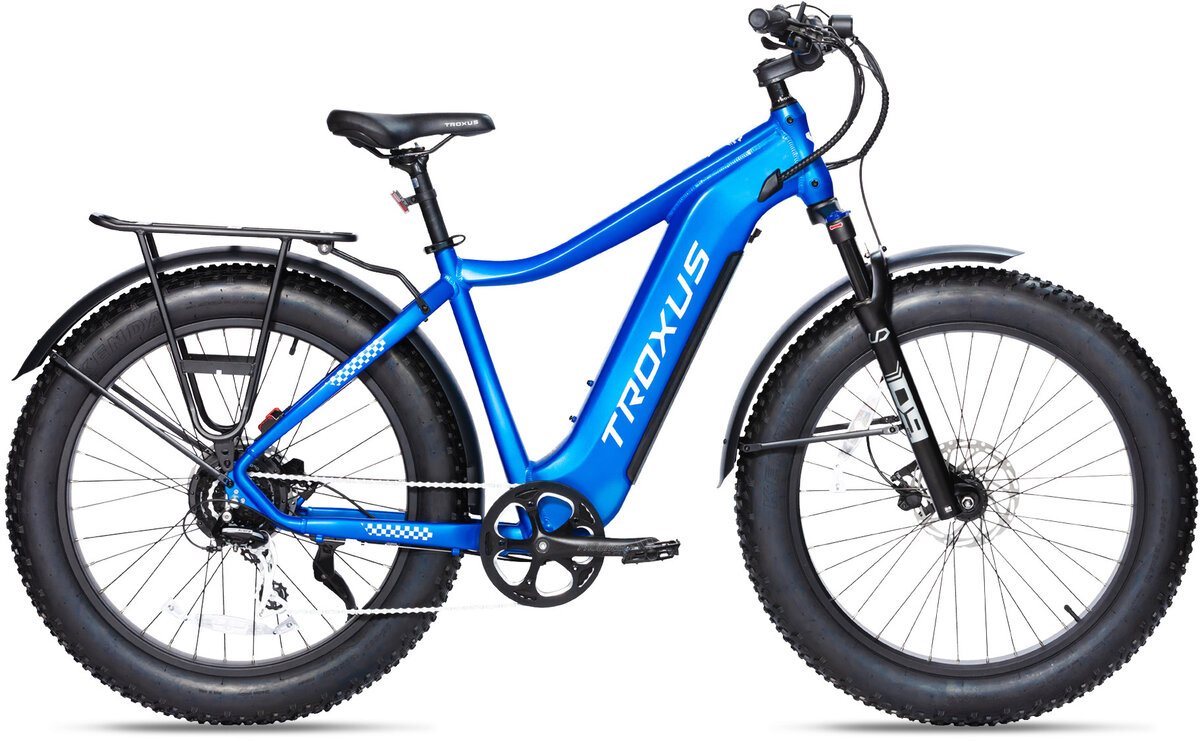

Explorer - Your Adventure Partner
Life is meant to be explored. Troxus Explorer series e-bikes equipped with durable fat tires and a sturdy aluminum alloy frame provide more stability and traction over rough terrain like snow, sand, and mud. And with the 48V 20A high-power SAMSUNG battery, Explorer has enough power to ride and explore further.
Standard Weight Limit 275LB
Maximum Weight Limit 353LB
| Frame Size | Standard (mm) |
|---|---|
| Wheel size | 26"X4.0 |
| Seat tube | 500 |
| Seat tube angle | 71.0° |
| Head tube length | 160 |
| Head angle | 69° |
| Effective top tube | 605 |
| Bottom bracket height | 296 |
| Bottom bracket drop | 70 |
| Chainstay length | 490 |
| Offset | 46 |
| Trail | 91.2 |
| Wheelbase | 1159.5 |
| Standover | 714.3 |
| Frame Reach | 405 |
| Frame Stack | 624.6 |
Specs
| Frame | 6061 Aluminium Alloy |
|---|---|
| Fork | Aluminum Alloy, Suspension Fork |
| Rims |
Front: Single Wall Aluminum 36h Rear: Double Wall Aluminum 36h |
| Hubs | Nutted Front and Rear |
| Spokes |
Front wheel: black stainless 13 Gauge Rear wheel: black stainless 12 Gauge |
| Tires | 26" x 4.0" Tires |
| Bottom Bracket | Square Taper, Sealed |
| Crankset | 170mm w/46T |
| Rear Derailleur | Shimano 8 speed |
| Cassette/Freewheel | 12-32T, 8 Speed Cassette |
| Chain | KMC Z8.3 |
| Brakes | Tektro Hydraulic Disc Brake, 180mm Rotors |
| Handlebars | Aluminum 31.8mm, 700mm |
| Tape/Grips | Ergonomic Comfort |
| Stem | Threadless, 28.6mm, 7 Degree Rise |
| Headset | GINEYEA Sealed Bearing Headset |
| Seatpost | Forged Alloy, 30.9*350mm, 2 Bolt Clamp |
| Saddle | Troxus |
| Pedals | 9/16" Alloy Platform |
| Motor | Bafang 48V 750W Hub motor |
| Battery | Removable Internal Lithium-ion 48V, 20Ah (960Wh)with Samsung cells |
| Controller/Display | L401 LCD |
| Charger | 54.6V 3A |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Blue / Large / 26-inch | 850063567107 | 10870100007 | TRO18562112E |
